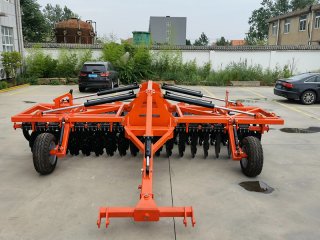

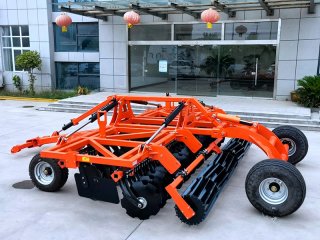

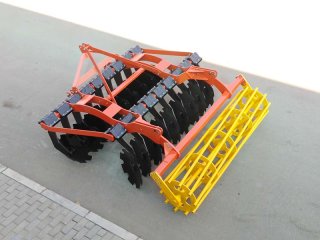

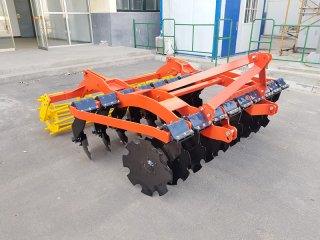

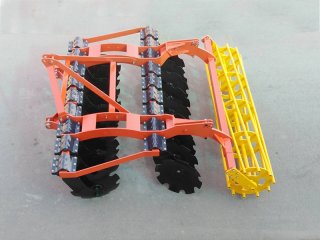

The compact rubber type disc harrow is designed specifically for stubble cultivation and seedbed preparation.
The compact design and aggressive disc angle ensure reliable penetration and excellent mixing in of harvest residues.
| Model | 1BQX-2.25 | 1BQX-2.5 | 1BQX-3.0 | 1BQX-50 | 1BQX-6.0 |
| No. Of Discs | 18 | 20 | 24 | 36 | 44 |
| Disc Dia. x Thickness | 560×5 /620X6 mm | 560×5 /620X6 mm | 560×5 /620X6 mm | 560×5 /620X6 mm | 560×5 /620X6 mm |
| Disc spacing | 250 mm | 250 mm | 250 mm | 250 mm | 250 mm |
| Working Depth | 50-120 mm | 50-120 mm | 50-120 mm | 50-120 mm | 50-120 mm |
| Working Width | 2250 mm | 2500 mm | 3000 mm | 5000 mm | 6000 mm |
| Cage Roller Dia. | 400/520 mm | 400/520 mm | 400/520 mm | 400/520 mm | 400/520 mm |
| Power Demand | 80-120 Hp | 80-120 Hp | 100-140 Hp | 180-220 Hp | 200-260 Hp |
| Weight | Around 1120 Kg | Around 1300 Kg | Around 1600 Kg | Around 4800 Kg | Around 5600 Kg |
| Dimension(L x W x H) | 2568×2450×1306 mm | 2530 x 2750 x 1300 mm | 2530 x 3250 x 1300 mm | 4500 x 5250 x 1400 mm | 4500 x 6250 x 1400 mm |
