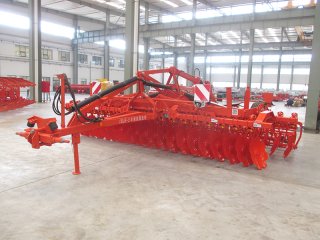

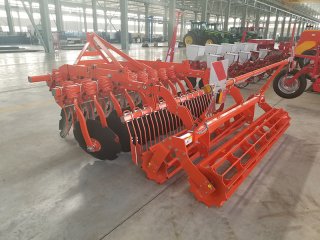

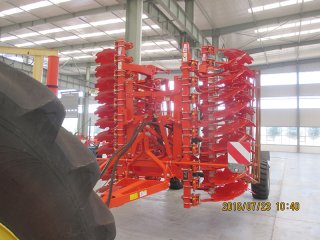

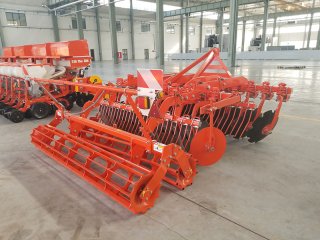

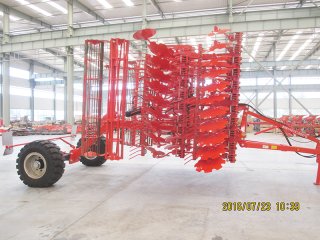

Learn from Europe’s Leading Compact Disc Harrow, designed to intensively mix soil and straw at depths of up to 10cm. It is ideal for preparing a stale seedbed, to help with weed control, or to incorporate straw in the oxygen layer of the soil. Large diameter discs can cope with set-a-side, lodged cereals, maize stalks, or tall green manure crops.
The modern stubble cultivator has three main functions – to encourage germination of weed and volunteer seeds; to incorporate straw; and to repair damage to compacted soil.
| Model | 1BJB-2.5 | 1BJB-3 | 1BJB-3.5 | 1BJB-5 |
| Mounting type | Three point linkage | Three point linkage | Three point linkage | Semi-Mounted |
| Mounting category | Cat. 2 | Cat. 2 | Cat.3 | Cat.3 |
| Working width | 2500 mm | 3000 mm | 3500 mm | 5000 mm |
| Number of discs | 20 | 24 | 28 | 40 |
| Coulter disc dia. x Thinkness | 620 x 6 mm | 620 x 6 mm | 620 x 6 mm | 620 x 6 mm |
| Disc distance | 250 mm | 250 mm | 250 mm | 250 mm |
| Row Space of discs | 1070 mm | 1070 mm | 1070 mm | 1070 mm |
| Under beam clearance | 800 mm | 800 mm | 800 mm | 800 mm |
| Power requirement | Above 120 hp | Above 150 hp | Above 180 hp | Above 220 hp |
| Transport width | 2500 mm | 3000 mm | 3500 mm | 3000 mm |
| Weight of basic version | 1900 Kgs | 2400 Kgs | 2700 Kgs | 5390 Kgs |
