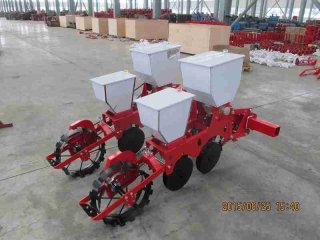

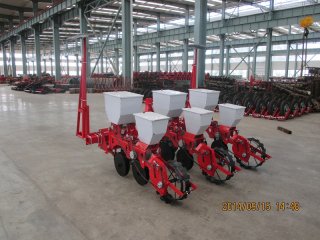

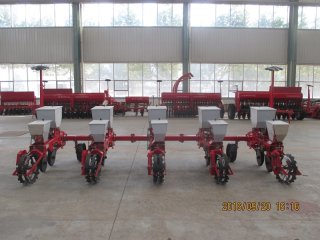

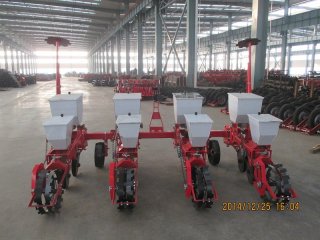

Mechanical Planter has 2,3,4,5,6 and 8 seed units, designed for large farms and commission agents, Operated with three point linkage system, match wheel tractor house power from 40-120hp. Mechanical Planter can be used for precise seeding, different types of seeds like corn, soya bean, Cotton ,sorghum and little peanuts etc. Planter can adapt every kind of tilled and semi-tilled soil.
Item | unit | 2BFY-2C | 2BFY-3C | 2BFY-4C | 2BFY-5C | 2BFY-6C | 2BFY-8C |
Row Number | 2 | 3 | 4 | 5 | 6 | 8 | |
Row Space | mm | 400-900 | 400-900 | 400-900 | 400-900 | 400-900 | 400-900 |
Weight | Kg | 400 | 540 | 690 | 830 | 980 | 1270 |
Seed Drilling Depth | mm | 30-60 | 30-60 | 30-60 | 30-60 | 30-60 | 30-60 |
Fertilizer Drill Depth | mm | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Volume of Seed Hopper | L | 70 | 105 | 140 | 175 | 210 | 270 |
Volume of Fertilizer Hopper | L | 100 | 150 | 200 | 250 | 300 | 400 |
Driving Force | Kw | 29-73 | 29-73 | 36-73 | 53-73 | 53-88 | 53-88 |
Working Efficiency | Ha/h | 0.4-1.6 | 0.6-2.4 | 0.8-3.2 | 1-4 | 1.2-4.8 | 1.2-4.8 |
Overall Dimensions | mm | 1900x2100x1400 | 1900x2600x1400 | 1900x3500x1400 | 1900x4400x1400 | 1900x5300x1400 | 1900x5300x1400 |
