Mini-till Seed Drill provides seed planting on prepared soil. Widely used for seeding of cereal seeds (wheat, rye, barley, oats, etc.), legumes (peas, beans, lentils, etc.), pasture seeds (alfalfa, Ryegrass, Fescue, Clover,Lucerne, Cocksfoot, etc) as well as seeds of other crops close to the size of seeds and seed rate to crops, along with fertilizer.

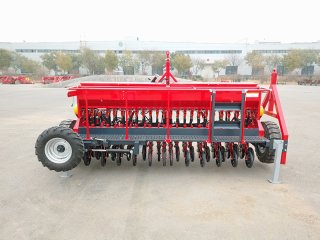

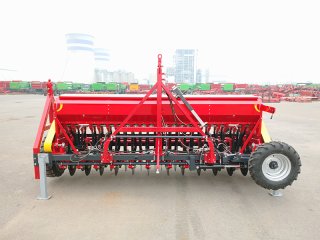

3 Point Hitch Seed Drills

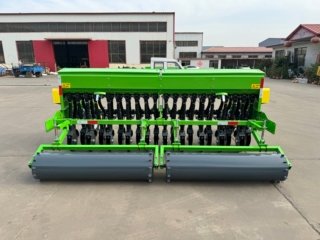

2BFX Series Seed Drill provides seed planting on prepared soil and under -sowing. Seed Drills are produced from 18 up to 28 rows (2,70-4,20m). These machines can be produced with mechanical lifting lever of sowing discs, with three point linkage system for transportation, mechanical or hydraulic markers for marker control, with tractor track ripper and with our without fertilizer hopper. By means of the fluted rollers,required amount of seed and fertilizer can be provided to planting discs through seed and fertilizer pipes.Seed and fertilizer are left into soil by means of disc openers.Disc openers are lifted and lowered by mechanic or hydraulic system which is equipped on the machine. Amount of seed and fertilizer arrange by means of the chain which driven by Wheel of machine.
| Model | 2BFX-16 | 2BFX-20 | 2BFX-28 |
| Attachment to tractor | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch |
| Row Number (rows) | 16 | 20 | 24 |
| Driving Force (HP) | Above 40 | Above 45 | Above 50 |
| Working Width (mm) | 2400 | 3000 | 3600 |
| Row space (mm) | 150 | 150 | 150 |
| Working Speed (Km/h) | 4-8 | 4-8 | 4-8 |
| Seed box capacity （L） | 170 | 340 | 410 |
| Fertilizer box capacity （L） | 160 | 375 | 430 |
| Net Weight(Kg) | 680 | 1150 | 1550 |
| Sowing Depth(mm) | 30-80 | 30-80 | 30-80 |
| Overall Dimension(m) | 1.9*2.65*1.3 | 2.1*3.25*1.6 | 2.1*3.85*1.6 |

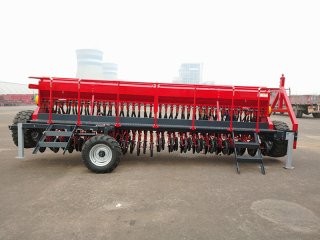

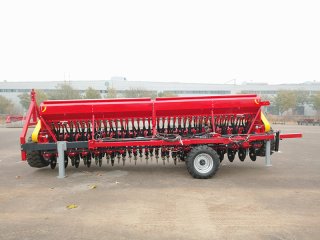

Trailed Type Seed Drills

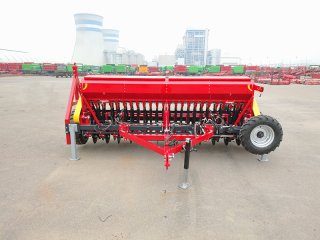

2BFY Series Seed Drill provides seed planting on prepared soil and under -sowing. Seed Drills are produced from 24 up to 36 rows (3,60-5,40m). These machines produced with hydraulic lifting lever of sowing discs, with side transport wheels for transportation, with front wheel for sowing. mechanical or hydraulic markers for marker control, with tractor track ripper and with our without fertilizer hopper. By means of the fluted rollers,required amount of seed and fertilizer can be provided to planting discs through seed and fertilizer pipes.Seed and fertilizer are left into soil by means of disc openers.Disc openers are lifted and lowered by hydraulic system which is equipped on the machine. Amount of seed and fertilizer arranged by means of the chain which driven by Wheel of machine.
| Model | 2BFY-24 | 2BFY-28 | 2BFY-36 |
| Attachment to tractor | Trailed | Trailed | Trailed |
| Row Number (rows) | 24 | 28 | 36 |
| Driving Force (HP) | Above 55 | Above 60 | Above 75 |
| Working Width (mm) | 3600 | 4200 | 5400 |
| Row space (mm) | 150 | 150 | 150 |
| Working Speed (Km/h) | 6-10 | 6-10 | 6-10 |
| Seed box capacity （L） | 570 | 660 | 850 |
| Fertilizer box capacity （L） | 645 | 750 | 920 |
| Net Weight(Kg) | 1750 | 1950 | 2750 |
| Sowing Depth(mm) | 30-80 | 30-80 | 30-80 |
| Overall Dimension(m) | 3.9*4.5*1.66 | 4.1*6.1*1.66 | 4.3*6.4*1.73 |
