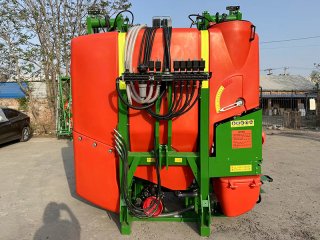

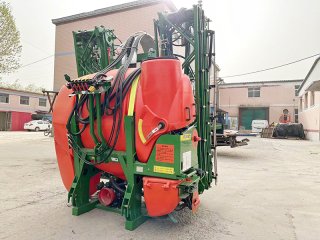

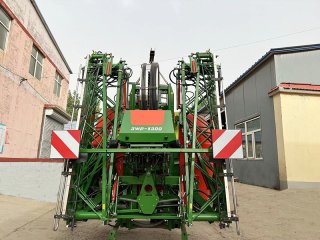

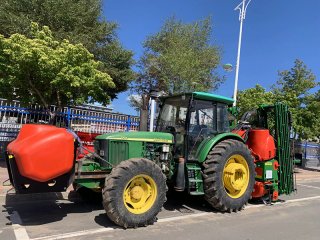

The WJ 02 mounted sprayer is available in tank capacities 1,300, 1,600 and 2,000 litres and with booms in working widths 24 metres. The WJ 02 is outstanding in its compact design, as well as its simple, comfortable operation. In combination with the front tank, the tractor-mounted combination capacity can be increased to 2800 litres.
Model | 3WP-1000 | 3WP-1600 | 3WP-2000 |
Attachment to tractor | Cat.2 | Cat. 3 | Cat. 3 |
Power (Hp) | Above 120 | Above 180 | Above 200 |
Working width (m) | 24 | 24 | 24 |
Tank Material | Polyethylene | Polyethylene | Polyethylene |
Tank Capacity (L) | 1300 | 1600 | 2000 |
Fresh water tank (L) | 260 | x | x |
Boom Sections | 9 | 9 | 9 |
Working Speed (km/h) | 6-12 | 6-12 | 6-12 |
Nozzles No. | 48 | 48 | 48 |
Transport width (m) | 2.2 | 2.2 | 2.2 |
Weight (Kg) | 1300 | ||
Height adjustment (m) | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 |
Spray atomization Angle | 110º | 110º | 110º |
Rev of power-output shaft (r/min) | 540 | 540 | 540 |
Displacement of piston pump (L/min) | 215 | 215 | 215 |
Stirring Method | High pressure jet mixing | High pressure jet mixing | High pressure jet mixing |
Maximum operating pressure of pump (Mpa) | 3.0 | 3.0 | 3.0 |
Boom Lifting & Lowing | Hydraulic control | Hydraulic control | Hydraulic control |
Boom Unfolding & Folding | Hydraulic control | Hydraulic control | Hydraulic control |
Fresh Water Tank | Yes | Yes | Yes |
Induction bowl | Yes | Yes | Yes |
Hydraulic pump drive | can be equipped as an option | can be equipped as an option | can be equipped as an option |
One-sided independent fold | can be equipped as an option | can be equipped as an option | can be equipped as an option |
Boom with individual tip angling | can be equipped as an option | can be equipped as an option | can be equipped as an option |
Staandard Accessories | Germany Lecher Nozzles, Italy AR215 6-cylinder diaphragm pump, Italy ARAG filter、Italy ARAG 5-way valve. | Germany Lecher Nozzles, Italy AR215 6-cylinder diaphragm pump, Italy ARAG filter、Italy ARAG 5-way valve. | Germany Lecher Nozzles, Italy AR215 6-cylinder diaphragm pump, Italy ARAG filter、Italy ARAG 5-way valve. |
